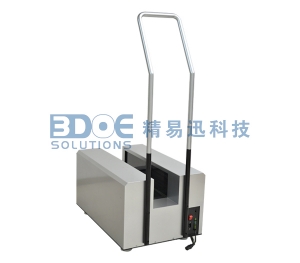

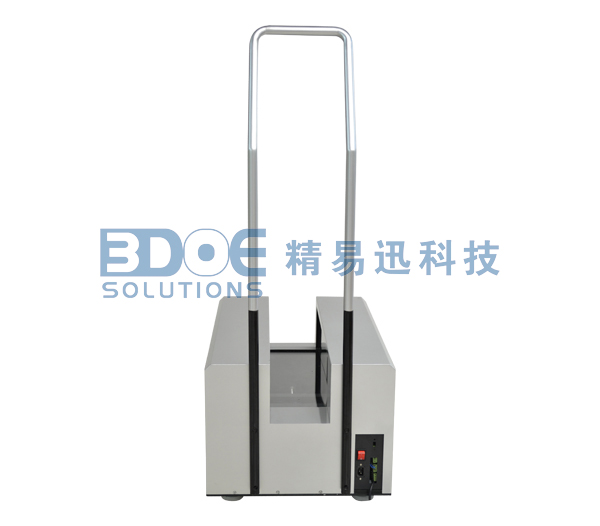

3D foot scanner LSF390
Product Category:3D foot scanner
產(chǎn)品型號：LSF390
產(chǎn)品描述：LSF 3D Foot Scanner is a special product for foot & last measurement,which is developed by ShenZhen Jingyixun Technology Co., Ltd. By using multiview laser optics design.

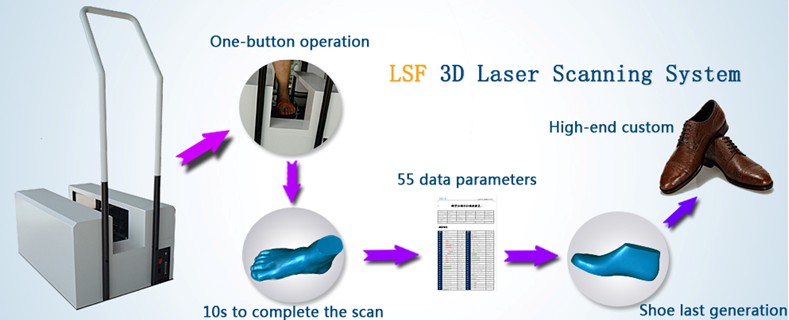

LSF 3D Foot Scanner is a special product for foot & last measurement,which is developed by ShenZhen Jingyixun Technology Co., Ltd. By using multiview laser optics design,the full scan of foot can be completed within 15 seconds, offers high quality foot point cloud and more than 50 foot parameters. It can be adapted in footwear manufacture, medicine ndustries, health recovery etc.
Product Features:
● Non-contact laser scanning, no damage to the human body and the naked eye.
● Fully-closed optical system and scanning without dead angle.
● Simple operation with one-click scan.
● Full scan of foot can be finished within 15 seconds.
● Barefoot or socked, plaster mold, sponge, embossed box and its finished product, shoe, last can be scanned.
● High measurement accuracy, and the standard error is within 0.2mm.
● More than 50 foot feature parameters can be extracted automatically, and produce a measurement report.
The output format includes ASC, STL, OBJ, etc., and some CAD/CAM software like Shoemaster, EasyLast, Lectra, DelcamCrispin and Rhino have supported it.
● Scanned data can be imported into 3D printer which can print the sample.
● Window-style software interface and easy operation.
Models and technical specifications:
Type | LSF-390 3D Laser Scanning System |
Scan Model | Non-contact laser scanner, II grade red visible laser, no damage to the human body and the naked eye |
Measurement Area | 300(length)×150(width)×100(height) mm |
Dimensions | 720×490×360 mm (L*W*H ) |
Standard Error | ±0.2mm |
Scanning Time | < 15 s |
Software | FeetScan |
Output Format | ASC, STL, OBJ etc |
OS | Windows XP/7 |
Power Supply | 220V AC, users are recommended to bring your own power supply with 500W |
