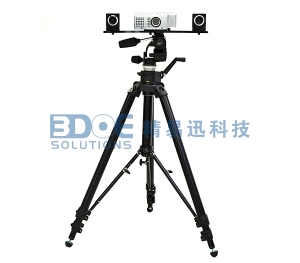

3D scanner (color type) PTS-C
Product Category:3D scanner system (color type)
產(chǎn)品型號(hào)：PTS-C (color type)
產(chǎn)品描述：Three-dimensional scanner camera PTS-C Non-contact white light scanning, be adept in measuring both solid and soft objects. Speedy scanning, capture at least 1 million pixels within 5 seconds....
Principle:
3DOE scans complete surface of object, then achieve one-step measuring and digitizing by the means of computer-vision, photo-electricity sensor, graphics designer & software control.
Product’s functions:
● Non-contact white light scanning, be adept in measuring both solid and soft objects.● Speedy scanning, capture at least 1 million pixels within 5 seconds.
● High precision: 3DoE adopts high-end computer vision technology and own patent. Measuring precision is 0.02-0.05 mm without void point.
● Portable machine, which can be delivered to work place lightly.
● Work indoor or outdoor, without need of darkroom, flexible adaption with measure environment,
● Hyperfocal distance, from 300 to 500 mm.
● Automatic & precise assembly with multi-probes. Object can be moved & turned with random.
● Rapid mesh capture, can get realistic surface of object.
● Powerful & handy operational software, which patent is owned by our company.
● Flexible data interface, supporting ASC, IGES, can be imported & exported with Pro/E, UG, Imageware, Geomagic , AutoCAD, etc.
Models and technical specifications:
Type | PTS400-C |
Manner | Non-contact |
Measuring Area | 200 x 150 - 400 x 300 mm2 |
The largest measure scope | 2000×1500×1500 mm3 |
Resolution | 1.3M pixels |
Measuring precision | 0.02 ～0.05 mm |
Measurement time | ≤5s |
Point Spacing | 0.15～0.3 mm |
Operation distance | 700 ～ 3000 mm |
File format | ASC, IGES, STL, VRML, DXF |
Assembly | Auto |
Computer | WindowsXP/win7 |
